| 規格 | ||
 連接器：主機（右）側SAS插槽*1 連接器: 主機 (左) 側 usb 3.0 標準-b型（母） 接口*1 一鍵升級按鈕*1 狀態指示燈*1 （DC）12V電源接口*1 |
| 兼容性 | ||
|
兼容USB 3.0、USB 2.0主機設備 兼容Windows 10、Windows 8.1、Windows 7、Windows XP和大多數Linux操作系統等。 |
| 電源 | ||
| (DC)12V供電 |
| 尺寸 | ||
| 暫定 |
| 重量 | ||
| 暫定 |
| 工作溫度范圍 | ||
|
0至55°c (無氣流) 貯存溫度范圍 -20 到60°c 相對濕度 高達 90% (無冷凝) |

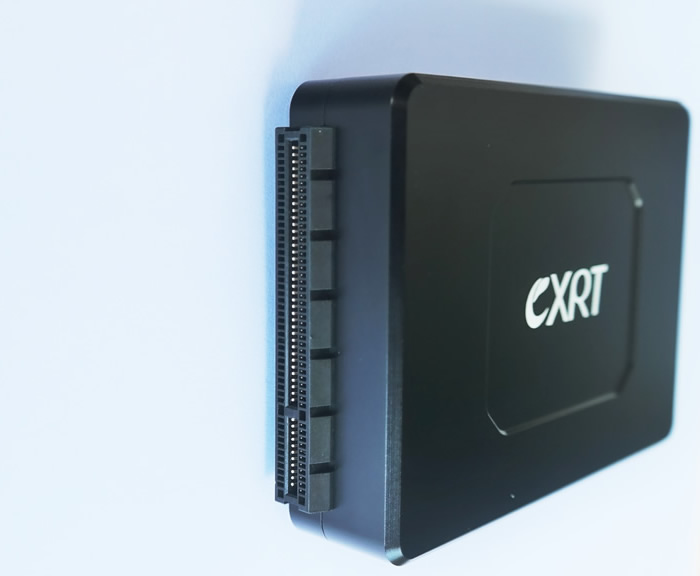

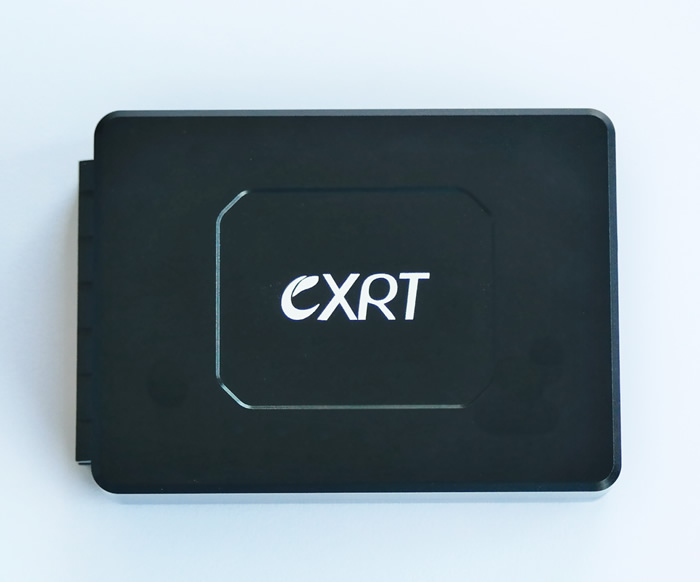

| USB 3.0 to SAS Bridge |
| Description | ||
| USB 3.0 to SAS Bridge is a convenient type of bridge, can quickly collect evidence of SAS hard drive. |
| Function | ||
|
The USB 3.0 to SAS Bridge is suitable for a solid-state hard disk with SAS interface type. The use of one-way transmission control technology to ensure that the SAS hard drive data is read without being arbitrarily rewritten, while protecting the secret computer will not be through the SAS hard drive data leakage. Exquisite compact, easy to carry, with a key upgrade function, easy to use, without installation drive, Plug and play. |
| Specifications | ||
|
Connectors: Host (right) side SAS slot $number Connectors: Host (left) side USB 3.0 Standard B-type (mother) interface $number One-click upgrade button $number Status indicator $number (DC) 12V Power Interface $number |
| Compatibility | ||
|
Compatible USB 3.0, USB 2.0 host device Compatible with Windows 10, Windows 8.1, Windows 7, Windows XP, and most Linux operating systems. |
| Power | ||
| (DC) 12V power supply |
| Size | ||
| Provisional |
| Weight | ||
| Provisional |
| Operating Temperature range | ||
| 0 to 55°c (no airflow) |
| Storage Temperature Range | ||
| -20 to 60°c |
| Humidity | ||
| Up to 90% (non-condensing) |
